Warehouse ADCS Barcode Processing

Purpose of this document

The Ceres ADCS functionality allows users to use handheld barcode scanning devices with the Ceres database. Users can perform Inventory Picks, Warehouse Transfers, Bin to Bin Movements, Inventory Counts, WAP Pallet Movements, Lookup warehouse information, Reprint Tags, add Items to existing Donation and Agency Orders. If your food bank is not already a user of the ADCS handheld functionality, this document is designed to supplement the project work. It does not represent all the needed tasks for initial use.

Ceres Object release 6.00.00 and 6.00.17 are required for the functionality described in this document.

TABLE OF CONTENTS

• Setup
  • Location Setup
  • ADCS Users
  • Inventory Setup
  • ADCS Shipment Pallet Tag
  • ADCS Handheld Printer Selections
• General Handheld Functions
  • Logging In
  • Main Menu
  • Logging Off
• Warehouse Transactions
  • Warehouse - Pallet Movements
  • Warehouse - Move WAP Pallet
  • Warehouse - Inventory Counts
  • Lookup – Item
  • Lookup – Pallet
  • Lookup – Pallets by Bin
  • Scan/Print – Barcodes
  • Scan/Print – Pallet Labels
  • Scan/Print – Bin Labels
• Transfer Orders
  • Transfer Order Shipments
  • Transfer Order Receipts
• Consolidate Pallets
• Suspense Journal
• Donation Order
• Receiving Put-Away’s
• Agency Order
  • Processing Agency Orders with ADCS
  • Printing ADCS Shipment Pallet Tag
• Inventory Picks – Without Line Skips
• Inventory Picks with Line Skips
  • Sort Order
  • Bar Code on Pick Reports
  • Handheld Pick Process
  • Navigating the Pick Lines
    • Go to a specific line on the pick.
    • Skipping the current line
    • Goto Skipped Lines
    • Exit Skipped Lines

Setup

You must have an ADCS server, a dedicated NAS, as well as a terminal capable of using VT100 communication. Your Ceres license must also contain the supporting license keys. Assistance from your VAR is typically required for the initial setup of the ADCS handheld infrastructure.

Note: If the screens shown on handhelds in this document do not match your handheld screens, it is likely that your miniforms are out of date. It will be necessary to contact your solution center to get the latest miniforms installed on your system.

Location Setup

1. To use the ADCS functionality with a Location, the Use ADCS field must be toggled on in the Warehouse FastTab of the Location Card.

2. To utilize the ADCS Inventory Count functionality for a location, you must specify an ADCS Physical Inventory Journal Template and ADCS Physical Inventory Journal Batch.

3. An ADCS Receipt Bin Code on the Bins FastTab of the Location Card can be defined. If specified, this Bin will be used as the receiving bin during the Donation Order building function. If left blank the user will need to enter or scan the receiving bin during the Donation Order building process.

ADCS Users

All ADCS users must have a database login. Windows Logins are not accessible from the ADCS terminal. Please contact your system administrator if you need to have your credentials added. To begin using the ADCS functionality, you must set up the ADCS User on the Warehouse Employee record.

1. Warehouse Employees can be accessed by selecting “Search” from the Dynamics 365 Business Central Banner and entering “Warehouse Employees” in “Tell me what you want to do” then selecting “Warehouse Employees” from the results in the Go to Pages and Tasks section OR by selecting the “Warehouse Employees” menu action (if present) from your Role Center home page.

2. To set up a new Warehouse Employee, click New.

3. In the User ID field, enter or select the user’s login.

4. In the Location Code, enter the location where the User may perform ADCS interaction.

5. In the ADCS User field, enter the database login to be used with ADCS.

6. Check the Default box if this is the user’s main location to perform work. Each user must have a default location.

7. Select ADCS Password from the menu options.

Note: The ADCS password is different from the Ceres login password. In other words, you could make your users log into the Ceres database with one password, and log into ADCS with a separate password.

8. In the Password field, enter the password for use with ADCS.

Note: The ADCS password is visible upon first entry in the Password field, but once you leave the field, the password is obfuscated.

9. Select the back arrow when finished.

Inventory Setup

1. The ADCS functionality has several parameters that will tailor the features available within ADCS.

2. Inventory Setup can be accessed by selecting “Search” from the Dynamics 365 Business Central Banner and entering “Inventory Setup” in “Tell me what you want to do” then selecting “Inventory Setup” from the results in the Go to Pages and Tasks section OR by selecting the “Inventory Setup” menu action (if present) from your Role Center home page.

Click on the ADCS FastTab to display the options available.

Auto Transfer Journal Posting: This field indicates whether the Transfer Pallet function will automatically post the Movement from the handheld immediately. If toggled on the movement of the pallet will post, if toggled off, the transaction will be entered into the Movement Xfer. Template Name and Batch Name specified on the Location card. Then it will be accessible via the Movement Worksheet in Ceres to review/post.

Max. Pick Labels per Item: This field is used to limit the quantity of pick labels generated for any one item. A value of zero indicates no limit.

ADCS Pick Posting Option: This field controls the update and posting option Ceres will perform when utilizing the ADCS Inventory Pick Function. This field has four options as explained below.

Ship Only – The inventory pick will be posted with the “Ship” option. This will occur regardless if the pick has any unfulfilled lines.

Ship and Invoice Fulfilled Only – The inventory pick will be posted with the “Ship and Invoice” function only if all the lines on the pick have been fulfilled. Otherwise, the pick will not be posted and must be posted manually.

Ship and Invoice – The inventory pick will be posted with the “Ship and Invoice” function regardless of whether all the lines on the pick have been fulfilled.

Update Only – This pick will be updated with the information collected from the ADCS, but the pick will remain un-posted. Manual posting of the pick will be required.

Cycle Count Notification: This field indicates how the handheld code will handle pallet movements when the item is currently involved in a physical inventory cycle count. When attempting a pallet move via ADCS, the Item will be checked to see if it is currently on a physical inventory cycle count journal. If the Item is not on a cycle count the process will proceed. If the Item is on a cycle count, this field will determine the handhelds appropriate action. There are three possible options.

Blank – The handheld will accept the transfer without any warnings or errors.

Warning – The handheld will warn the user that the item is involved in a cycle count currently but will still allow the transfer to occur.

Error – The handheld will warn the user that the item is involved in a cycle count currently and will not allow the transfer to occur.

In-Transit Location: This field should be set to the valid in-transit Location when using the ADCS system to create, ship, and receive Transfer Orders between Locations (buildings). All transfer orders initiated by the ADCS system will utilize this Location as the in-transit location.

Lot Match Required: Pallet consolidation allows 2 pallets of the same Item, in the same Location, to be consolidated into one pallet. This field is used during the ADCS Pallet Consolidation functionality. If this field is toggled on, then the pallets being consolidated must be from the same lot number in addition to the pallet having the same Item number and Location. Leave this toggled off if you wish to be able to consolidate pallets from different lots.

Note: Consolidating Pallets from different Lots will impact proper FEFO aging tracking.

Consolidation Template: Specify a valid item journal template to be used to post transactions from the pallet consolidation function.

Consolidation Batch: Specify a valid batch name to be used to post transactions from the pallet consolidation function.

ADCS Shipment Pallet Tag

1. The ADCS Shipment Pallet Tag must be specified in the warehouse report selections. Report Selection – Inventory can be accessed by selecting “Search” from the Dynamics 365 Business Central Banner and entering “Report Selection – Inventory” in “Tell me what you want to do” then selecting “Report Selection – Inventory” from the results in the Go to Pages and Tasks section OR by selecting the “Report Selection – Inventory” menu action (if present) from your Role Center home page.

2. Select “AO Shpt” from the drop-down. Select report 14102571 as the report ID.

ADCS Handheld Printer Selections

Note: In Ceres 5.0 and above, printing from ADCS is no longer supported.

General Handheld Functions

Logging In

1. Access the Welcome screen from the ADCS terminal.

2. Enter your User ID and press enter.

3. Enter your Password and press enter.

4. The Location will automatically flow in the default location for this user. Press enter to accept, or type the desired location and press enter.

Note: If your login is not associated with the desired location, you will receive an error. Please add the information to the Warehouse Employees form as described earlier in this document.

Main Menu

The Main Menu is the central screen where you may access your ADCS activities. From this menu, press the number key of the functional area you want to access, and then press enter.

Logging Off

1. From the Main Menu, press 4.

2. Press Enter.

3. To Log off, press 1. To continue your session, press 2 to return to the Main Menu.

Warehouse Transactions

Warehouse - Pallet Movements

ADCS Pallet Movements are a way for users to perform transfers without needing to access the Item Journal. To compare this process, please reference Transferring Items using the Item Reclass Journal.

1. From the Main Menu, select Warehouse.

2. From the Whse Activities Menu, select Transfer Pallet.

3. Scan or type the pallet number to be moved. The terminal will flow in the Item, Description, Lot, Qty, and Bin where the item is currently stored.

4. Scan or type the To Bin Code, and then press enter. The pallet will be moved from the bin specified on the “From” line to bin specified on the “To” line.

5. Continue processing pallets or press escape to return to the Whse Activities Menu.

Note: Pallets currently on the WAP (Warehouse Activity Plan) are not allowed to be moved using this ADCS function. Attempting to move a pallet on the WAP will result in an error message directing the user to use the “Move WAP Pallet” ADCS function instead. Transfer Pallet is for manual movements.

Warehouse - Move WAP Pallet

The ADCS terminal allows you to complete a pallet drop as indicated on a Warehouse Activity Plan (WAP).

Note: A WAP needs to be generated before processing this work with the handheld.

1. From the Main Menu, select Warehouse.

2. From the Whse Activities Menu, select Move WAP Pallet.

3. Scan or type the item number to be moved. The terminal will flow in the rest of the fields based on the first entry in the WAP.

4. Verify the “To” field, which signifies the bin the pallet will be placed in. If it is incorrect, scan or type the desired bin.

5. Press enter.

Warehouse - Inventory Counts

The ADCS Inventory Counts functionality allows you to use ADCS with physical inventory counting. Entries made via ADCS are logged in the Physical Inventory Journal where a manager may review and post the entries.

Note: Inventory quantities will not be affected until the Physical Inventory Journal is posted from the Ceres database.

1. From the Main Menu, select Warehouse.

2. From the Whse Activities Menu, select Inventory Count.

3. Scan or type the pallet to count. The terminal will flow in the item, description, lot, and bin.

4. Verify the bin. If it is incorrect, scan or type the correct bin code. Press enter.

5. Type the quantity and press enter.

Lookup – Item

1. From the Main Menu, select Lookup.

2. From the Lookup Menu, select Item.

3. Scan or type the item number. The terminal will flow in the Description, Description 2, and Pack Size.

Lookup – Pallet

1. From the Main Menu, select Lookup.

2. From the Lookup Menu, select Pallet.

3. Scan or type the pallet number. The terminal will flow in the item number, description, the bin where the pallet is being stored, the lot, and the quantity on hand vs. the quantity on warehouse picks.

Lookup – Pallets by Bin

1. From the Main Menu, select Lookup.

2. From the Lookup Menu, select Pallet by Bin.

3. Scan or type the bin number.

4. The terminal will flow in the pallet numbers and a description of the item for each pallet in the bin.

5. Select the pallet to view by typing the number next to the pallet number.

6. The terminal will flow in the item number, description, the bin where the pallet is being stored, the lot, and the quantity on hand vs. the quantity on warehouse picks.

Scan/Print – Barcodes

The Scan Barcode function allows you to test the reliability of your barcode scanner.

1. From the Main Menu, select Scan/Print.

2. From the Scan/Print Menu, select Scan Barcode.

3. Scan a barcode.

4. Press enter. The terminal will return the translated barcode information.

Scan/Print – Pallet Labels

1. From the Main Menu, select Scan/Print.

2. From the Scan/Print Menu, select Reprint Pallet.

3. Scan or type the pallet number, and then press enter. The pallet report will be sent to the printer.

Note: Printing from Ceres 5.0 is not supported currently.

Scan/Print – Bin Labels

1. From the Main Menu, select Scan/Print.

2. From the Scan/Print Menu, select Reprint Bin.

3. Scan or type the bin number, and then press enter. The bin report will be sent to the printer.

Note: Printing from Ceres 5.0 is not supported currently.

Transfer Orders

Transfer Order Shipments

Ceres can create and process Transfer Orders directly from the ADCS handheld device.

1. To begin this process, select the Warehouse menu on the handheld. From this menu select “Transfer Shipment”, option 5.

2. The transfer shipment form will be displayed.

3. Enter the “To Location”, where the product is being transferred to.

4. Scan the Pallet label or enter it on the handheld keypad manually. Once a valid pallet is entered, the system will populate the item number, description, from bin, and quantity automatically.

5. For verification, you must still enter the bin and quantity even though they are displayed. You may scan the bin code label if it is available otherwise enter manually via the handheld keypad. Next, enter the quantity. The quantity must match the pallet quantity, or an error will result.

6. Repeat these steps for each pallet being transferred.

7. Once all the pallets for the Transfer Order have been entered, use the “Register” button on the handheld to post the Transfer Order shipment if desired. Otherwise, the Transfer Order will just be entered, and you can post the shipment from Ceres when required. Here is an example of the Transfer Order just entered.

Transfer Order Receipts

1. To begin this process, select the Warehouse menu on the handheld. From this menu select “Transfer Receipts”, option 6.

2. A list of open Transfer Orders will be displayed. Each order will show two lines, the first indicates the Transfer Order number, and the second shows the location the transfer is coming from.

3. Select the Transfer Order number to work with.

4. Next scan the pallet number or enter it manually via the handheld keypad.

5. The Item No., description and quantity will be displayed. Next you must enter or scan a valid bin number to move the pallet into and enter quantity on the pallet. You must enter the quantity even though it is displayed for verification purposes.

6. Repeat this step for all the pallets on the Transfer Order. Once all pallets have been successfully scanned or entered, you can post the receipt from the handheld if desired via the “Register” button on the handheld. If you prefer to post the orders manually in Ceres skip this step and access the Transfer Order in Ceres to complete the process.

Consolidate Pallets

Ceres can consolidate pallets of a like item into one pallet. This is used typically when a small amount remains on one pallet, and it is desirable to move the quantity from the smaller pallet onto the larger pallet to maintain only one Pallet slot for the Item at time of pick. It is a requirement that the pallets being consolidated are for the same item and in the same warehouse location. Based on a parameter setting (see Setup above for parameter settings). Ceres can also force the lot numbers to match before allowing the consolidate process.

1. To begin this process, select the Warehouse menu on the handheld. From this menu select “Consolidate Pallets”, option 8.

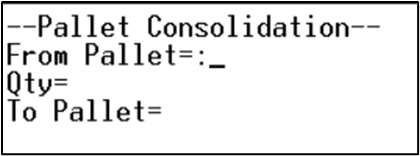

2. The consolidate pallets form will be displayed.

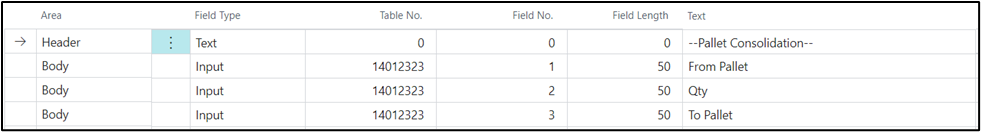

Note: Ceres 6.00.17 adds the ability to allow less than a full remaining quantity to be consolidated.   The WA-CONSOLIDATEPALLET miniform will need to be modified with this update to add the Qty field.

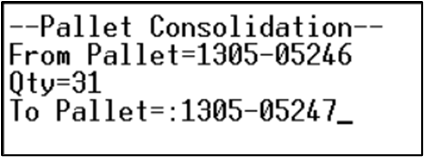

3. Scan or enter the pallet that will be consolidated onto another pallet. This first pallet is normally the smaller quantity, but Ceres does not enforce this. Next enter the pallet, the first pallet’s quantity will be consolidated onto.

Note: Ceres 6.00.17 adds the ability to allow less than a full remaining quantity to be consolidated.  The Qty is defaulted to the current remaining quantity on the Pallet.   The user can update the Qty field to consolidate less than the full remaining quantity.

4. The system will check the validity of the consolidation and ensure that both pallets for the identical Item and Warehouse Location. If the Location of the pallet entered is different from the handheld’s location or the pallets contain different Item numbers an “Invalid Pallet” message is displayed.

5. If the Item and Location match, next the “Lot Match” parameter is checked. If matching lot numbers is required and the lots from the two pallets do not match, an “Invalid Pallet” message is displayed.

6. If all requirements are met, the system processes a negative adjustment to the first pallet effectively zeroing its quantity and the quantity is then added to the second pallet.

Note: The process of consolidating pallets clears (deletes) all Item Journal Line records within the Consolidation Template and Consolidation Batch as specified on Inventory Setup. This mandates that the pallet consolidation process is a one-user-at-time operation.

Suspense Journal

This process allows the user to place pallets onto an Item Suspense Journal, effectively removing this inventory form being used on other transactions until the pallet is removed from the suspense journal. The process allows for both adding pallets to the suspense journal and removing pallets from suspense journal.

1. To begin this process, select the Suspense Journal on the handheld. From this menu select “Suspense Journal”, option 9.

2. The Suspense Journal form will be displayed.

3. Scan or enter the pallet number. If the pallet is found and is not currently on the suspense journal the pallet information will be displayed including the pallet’s available inventory that can be placed on the suspense journal. If the default reason code flag is checked on the location, the reason code from the batch will be displayed for the user’s convenience. You can use the default reason code or enter a different valid reason code if desired. The default action of Add/Rmv Suspense will display A. This means the pallet will be added to the suspense journal. Entering A in this field or simply pressing Enter will record this pallet on the suspense journal.

4. To remove a pallet from the suspense journal the process is similar. Scan or enter the pallet number. If the pallet is found and is currently on the suspense journal the pallet information will be displayed and the Add/Rmv Suspense field will be set to R for Remove. Entering R in this field or simply pressing Enter will remove this pallet from the suspense journal.

5. At any time you can review the pallets on the suspense journal in Ceres.

Donation Order

This process allows the user to enter information onto an existing Donation Order directly from the handheld. This process requires that the Donation Order be created in Ceres first and that the Items expected are entered as lines on the Donation Order. The lines must exist, but the quantity should be left blank. The process will allow updating of the Donation Order for any Item that is specified on the Donation Order.

1. First, we will create a Donation Order (See Donation Orders for more information on creating Donation Orders). Add lines to the Donation Order for expected Items to receive. Here is the example order we are using. Notice that we are expecting 2 items on the Donation Order.

2. On the handheld, choose from the Warehouse menu, option 8 – Donation Order.

3. Next enter or scan the Donation Order number into the handheld.

4. Enter or scan the Item number for the first item received and the description will be displayed.

5. Enter the quantity received.

6. Repeat this process for all pallets received – here we will bring in two more pallets of Cereal.

7. If you enter an item that does not exist on the order, you will receive the following error.

8.  At the completion of the scanning, exit the function and the Donation Order is updated with the appropriate information. If the parameters specify a default ADCS Receipt Bin that bin code will be entered on the donation order lines otherwise it will be left blank or default to the last used bin based on warehouse location settings.

Here is the Donation Order as it now stands.

9. At this point, the Donation Order could be updated into the system. However, if your process involves a put-away function as well as the receiving, the handheld or another handheld can be used to perform the update of the destination bin code for the product.

Receiving Put-Away’s

This process will update a Donation or Purchase order with a destination bin code prior to posting. This is normally used when the operation involves two or more warehouse workers working together to receive and put away the product. The first handheld handles the order receiving process and gets the quantities and pallets built on the Donation or Purchase order. The second set of workers will move the pallets to the correct bins and record the bin the pallet was placed in.

1. This process is accessed from the Warehouse menu by choosing option 9 – Receiving put-Away.

Here is the donation order we will put-away. Notice the bin code is “01” which is the4 default ADCS receiving bin code.

2. Next enter or scan the pallet number.

3. The Order number, Item No and description are displayed. After moving the pallet to the desired bin code, scan or enter the bin code the pallet was placed in.

4. Repeat this process for all the pallets.

5. When done, the Donation or Purchase order is updated to reflect the bin codes entered during the receiving put-away process.

Agency Order

Processing Agency Orders with ADCS

This process allows the user to enter information onto an existing Agency Order directly from the handheld. This process requires that the Agency Order be created in Ceres first. The process will allow products to be added to the Agency Order by scanning the Pallet No for each Item you would like to add to the order.

1. First, we will create an Agency Order ensuring that the “ADCS Order” is toggled on (See Agency Orders for more information on creating Agency Orders).

2. After all the ADCS agency orders have been entered, a report should be run called “Agency Order Barcode”.
3. Agency Order Barcode can be accessed by selecting “Search” from the Dynamics 365 Business Central Banner and entering “Agency Order Barcode” in “Tell me what you want to do” then selecting “Agency Order Barcode” from the results in the Go to Reports and Analysis section OR by selecting the “Agency Order Barcode” menu action (if present) from your Role Center home page.

4. The output of the report will show the ADCS orders with a barcode for scanning with the handheld. You can filter the report regarding shipment dates and other criteria, as necessary. Here is an example of the report.

5. On the handheld, choose from the Warehouse menu, option 10 – Agency Order.

6. Next, select option 1 – “Scan Pallets” from the Agency Order Menu to select the Agency Order and begin scanning Pallets onto the order.

7. Next enter or scan the Agency Order number into the handheld.

8. Enter or scan the Pallet No. for the first Item to be added to the order. Once entered the Item No., Bin Code, Lot No. and Pallet Quantity available will populate.

9. Confirm or change the quantity to order and press enter.

10. Repeat this process for all Pallets/Items ordered – here we will bring in two more pallets.

11. If the quantity requested is more than what is available on the Pallet, you will receive an “Insufficient Qty on Pallet” error message.

12. At the completion of the scanning, exit the function (via Esc key) and the Agency Order is updated with the Items/Pallets selected.

Here is the Agency Order as it now stands.

13. At this point, the Agency Order could be processed in Ceres just like any other Agency Order. However, if your process involves posting the shipment of the product on the Agency Order, the handheld or another handheld can be used to perform that function if you are using Shipment Option 1. If using any other Shipment Option, the Agency Order will need to be completed in Ceres.

14. Select option 2 – Post Shipment from the Agency Order Menu to select the Agency Order, post the Shipment.

15. Next enter or scan the Agency Order number into the handheld.

16. Enter the number of Shipping Pallet Count (one Shipping Pallet = one Shipping Tag) or confirm zero for no Shipping Tags and press enter to post the shipment.

17. Upon Shipment post, if additional input is required to post the shipment, the error will be displayed with a corrective action. In this case, the Shopper was missing on the Agency Order Header which prevented the Order shipment from posting.

18. Once shipment has been posted the Agency Order reflects the Quantity Shipped.

Printing ADCS Shipment Pallet Tag

Print of the ADCS Shipment Pallet Tags is accessible from the agency order list page and the agency order page.

On the agency order list page choose Actions à Print à  ADCS Shipping Pallet Tag.

On the agency order list page choose Actions à  Print à  ADCS Shipping Pallet Tag.

Inventory Picks – Without Line Skips

The Inventory Pick process with ADCS is designed to update picks via the handhelds. The process of creating Agency Orders and creating Inventory Picks is explained in other documents. This section will assume that the Order and subsequent Inventory picks have been created and will concentrate on the actual handheld process. You must use Ship Option 2 to manage picks with the Handhelds.

Note: There are several options as to what happens to picks because of updating picks via the handheld. Those are explained above in the setup sections. The process of entering picks via the handheld is identical regardless of the back-end processing option selected.

For this example, we have entered an Agency Order and created picks for the order. Because of the setup of our pick generation, in this example 3 picks were created for the one order. Here are examples of the order and the picks created.

1. To access the inventory Pick function, select option 4 – Inventory Pick from the Whse Activities Menu on the handheld.

2. The inventory pick form will be displayed.

3. Enter the pick number you wish to being working with. If the pick selected is already assigned to another handheld user, the following error will be displayed. Handheld users will only be able to access picks assigned to their user ID or that have not been previously assigned to any other user id.

4. If it is necessary to reassign a pick document, this can be accomplished by changing the Assigned User ID field on the General FastTab of the pick. Normally picks would not be assigned to the users prior to the process of picking via handheld, and the handheld pick process will make the user assignment.

5. Once we have a pick assigned to the user or select a pick that has not been assigned to any user, the user can then process the pick using the inventory pick screen on the handheld. Entering the pick (in yellow) will display the information about the first bin to select product from. There are numerous options for determining the picking sequence in Ceres covered in other documents.

6. You can then substitute a different pallet (if required) or accept the pallet suggested. Next, you must enter the bin code for confirmation purposes. Changing the bin code on the pallet record will be allowed, and warehouse move will be generated to move the pallet to the new bin code. On this line we will accept the bin code and pallet as suggested. Next, we enter the quantity picked. For this example, we attempted to enter a greater quantity than specified on the order. The following error is displayed, and we must adjust our quantity.

7. Enter the correct quantity and the line will be posted, and the next line will be displayed until all lines have been presented. At completion, the form will clear, and you will be allowed to enter the next pick number.

8. In this next example we have overridden the pallet’s bin code and changed it from 04-109-A to 04-109-B because that is where we found the pallet. This feature can be used to facilitate “Drop On Demand” functionality using the handheld ADCS unit. For installations using this feature, the ADCS pick function will record the transfer of the pallet from its storage bin slot to the pick slot where the pallet currently resides. If the pallet is on the WAP (Warehouse Activity Plan), that line on the WAP will also be updated and posted with the new bin slot information.

9. Finally on this pick we will short ship the line. The order called for 2 and we will only pick 1 because there was not a sufficient quantity available.

10. After completion of these picks, we return to our order to see the updates that have occurred. Notice that line 3 has a quantity shipped of 1 even though 2 were ordered and that line 2 is being picked from bin 04-109-B not 04-105-A.

11. We can verify that the pallet was moved by viewing the pallet record for pallet 1105-01833 and see that it now sits in bin 04-109-B.

12. And the corresponding warehouse move was executed for us.

Inventory Picks with Line Skips

The Inventory Pick with Line Skips is an optional process with ADCS builds upon the process outlined above with the following enhancements:

1. Pick Number Bar Code added to the physical pick documents (portrait and landscape)
2. Sorting options and syncing of the line item sorts between the Pick Page, Pick Report, and ADCS Pick Line list.
3. Ability to skip a pick line on the handheld and then return to process the skipped lines.
4. Ability to split lines and process shorts/cuts for pick lines processed via the handheld.

Note: Ceres requires the Inventory Pick miniform call on the “MENU-WHSE ACT” mini form to be changed from WA-INVENTORYPICK to WA-INVENTORYPICKSKIP. Please contact your Ceres solution center to setup/create the WA-INVENTORYPICKSKIP mini form.

Sort Order

The sort order for the Pick Lines on the Pick Page, Pick Report (landscape or portrait), and Handheld can be specified on the Warehouse fasttab of the Location card.

Pick Line Sort Order: This field controls the order of the pick lines on the Pick Page, Pick Report, and Handheld.

<blank> – The pick lines will be sorted by “Create Pick By” and “Pick Creation Sort Order” settings on the Warehouse fasttab of the Location Card.

Item Gross Weight – The pick lines will be sorted descending by each Item’s gross unit weight.

Bar Code on Pick Reports

The Pick No Barcode has been added to the Ceres Picking List-Landscape (Report# 14012290) and Ceres Picking List-Portrait (Report# 14012291) reports.

Handheld Pick Process

For this example, we have entered an Agency Order and created pick(s) for the order. Because of the setup of our pick generation, in this example 1 pick was created for the Order. Here are examples of the order and the pick created.

Agency Order Lines

Pick Lines

1. To access the Inventory Pick function, select option 4 – Inventory Pick from the Whse Activities Menu on the Handheld.

2. The inventory pick form will be displayed.

3. Scan or enter the pick number you wish to begin working with. If the pick selected is already assigned to another Handheld user, the following error will be displayed. Handheld users will only be able to access picks assigned to their user ID or that have not been previously assigned to any other user id.

4. If it is necessary to reassign a pick document, this can be accomplished by changing the Assigned User ID field on the General fasttab of the pick. Normally picks would not be assigned to the users prior to the process of picking via handheld, and the handheld pick process will make the user assignment.

5. Once we have a pick assigned to the user or a pick that has not been assigned to any user is selected, the user can then process the pick using the Inventory Pick screen on the Handheld. Scanning/entering the pick will display the information about the first Item to select product for according to the Pick Line Sort Order mentioned above.

Note: The Assigned User ID, Start Date, and Start Time on the Pick Header are populated when the Pick is selected on the Handheld. When picking is complete and the pick has been fully handled, the End Date and End Time are populated.

6. Prior to selecting the Pallet/Bin, three new fields are available for the “Skip” functions.

Skip:

No – The selection proceeds to the “GoTo Skipped” field.

Yes – The current Item is skipped, and the next Item is displayed according to the Pick Line Sort Order.

Go To Skipped:

No – The selection proceeds to the “Exit Skipped” field.

Yes – The first skipped Item (if any) is displayed.

Exit Skipped:

No – The selection proceeds to the Pallet/Bin Code fields to select the Pallet & Bin Codes for the Item.

Yes – If in skipped Items, exit the skipped Items and display the next Item according to the Pick Line Sort Order.

7. You can substitute a different Pallet or accept the Pallet suggested. If substituting a Pallet, the substitute Pallet will need to be confirmed by Scanning/entering the Pallet twice.

Next, you must enter the Bin code for confirmation purposes. Changing the bin code on the pallet record will be allowed, and warehouse move will be generated to move the pallet to the new bin code. On this line we will accept the Pallet and Bin code as suggested.

Next, we enter the quantity picked. For this example, we attempted to enter a greater quantity (i.e. 5) than specified on the order (i.e. 2). The following error is displayed, and we must adjust our quantity.

8. If a Qty. less than the Order Quantity is entered (Qty. can be Zero) and “Inv. Short Handling Method” on the Warehouse fasttab of the Location Card is set to anything other than “None”, an Inventory Short will automatically be created when the Pick is posted provided Split Line equals “No”. Optionally, the Handheld user can change Split Line to “Yes” and a new line for that Item will be created so the user can select another Pallet/Bin for the remaining Quantity.

Enter 6 on the line that had 12 and select split line:

The Remaining quantity of 6 is prompted for:

Note: When “Inv. Short Handling Method” is configured and the Qty. entered is less than the Order Quantity and Split Line equals “No”, an Inventory Short will automatically be created when the Pick is posted.

9. If a Qty. less than the Order Quantity is entered and “Inv. Short Handling Method” on the Warehouse fasttab of the Location Card is set to “None”, Split Line is automatically set to “Yes” and a new line for that Item will be created so the user can select another Pallet/Bin for the remaining Quantity.

10. Once the correct quantity has been handled the line will be updated, and the next line will be displayed until all lines have been presented.  At completion, the form will clear, and you will be allowed to enter the next pick number.

Note: Once all non-skipped lines have been presented, the first skipped line will be automatically re-presented until all lines have been handled.

If a fully handled Pick is Scanned/entered again the following will be displayed.

11. After completion and posting of the pick, we return to our order to see the updates that have occurred.

Navigating the Pick Lines

Go to a specific line on the pick.

Enter the line number on the pick that you want to jump to:

The process will jump to that line if it exists and display it:

If the line has already been handled or does not exist, you will get this error message:

Skipping the current line

To skip the current pick line and move to next pick line, enter ‘YES’ on the Skip Line as shown here:

Goto Skipped Lines

To circle back and process previously skipped lines, enter “YES” on the Goto Skipped prompt:

Exit Skipped Lines

To break from reviewing skipped lines, enter “YES” on the Exit Skipped prompt:
